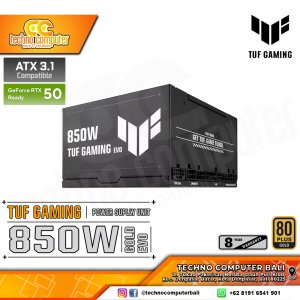

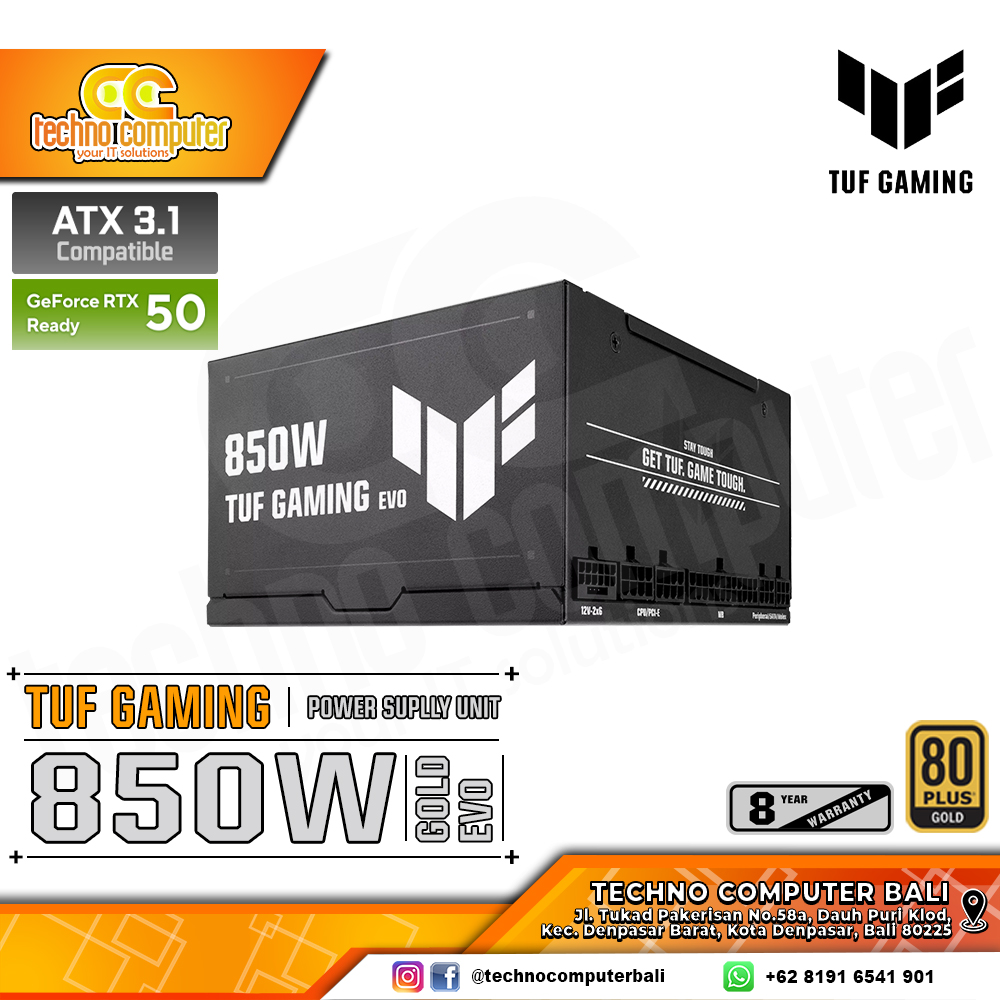

Power Supply ASUS TUF GAMING 850G EVO 850W 80 PLUS GOLD BLACK
-----------


Specification


Model : TUF-GAMING-850G-EVO
Intel Form Factor : ATX12V
PFC Type : Active PFC
ATX Standard : ATX 3.1
Dimensions : 140 x 150 x 86 mm
Efficiency : 80Plus Gold
MTBF : >120,000 hrs @ 40°C
Protection Features : OPP/OVP/UVP/SCP/OCP/OTP
Hazardous Materials : ROHS
AC Input Range : 100-240Vac
DC Output Voltage : +3.3V +5V +12V -12V +5Vsb
Maximum Load : 20A 20A 70.83A 0.3A 3A
Combined Load : 110W 110W 850W 3.6W 15W
Total Output : 850W


Cable Connectors :
MB 20+4pin x 1
CPU 4+4pin x 2
PCI-E 16pin x 1 (12V-2x6)
PCI-E 6+2pin x 3
SATA x 4
PERIPHERAL x 2


Package Contents :
Power Cord x 1
Motherboard Power cable x 1 (610mm)
CPU 1-to-2 Cable x 1 (650mm+100mm)
PCI-E Gen 5.1 Cable (16-pin-to-16-pin) x 1 (500mm)
PCI-E 1-to-1 Cable (8-pin-to-6+2pin) x 1 (500mm)
PCI-E 1-to-2 Cable (16-pin-to-6+2pin*2) x 1 (500+100mm)
SATA & Peripheral 1-to-2+1 Cable x 2 (400+120+120mm)
TUF Gaming Cable Tie x 3
User Manual x 1


Weight : 1.35 kg (single PSU)
Cybenetics Noise Level Certification : NA
0dB Technology : No
