Specifications :

Model

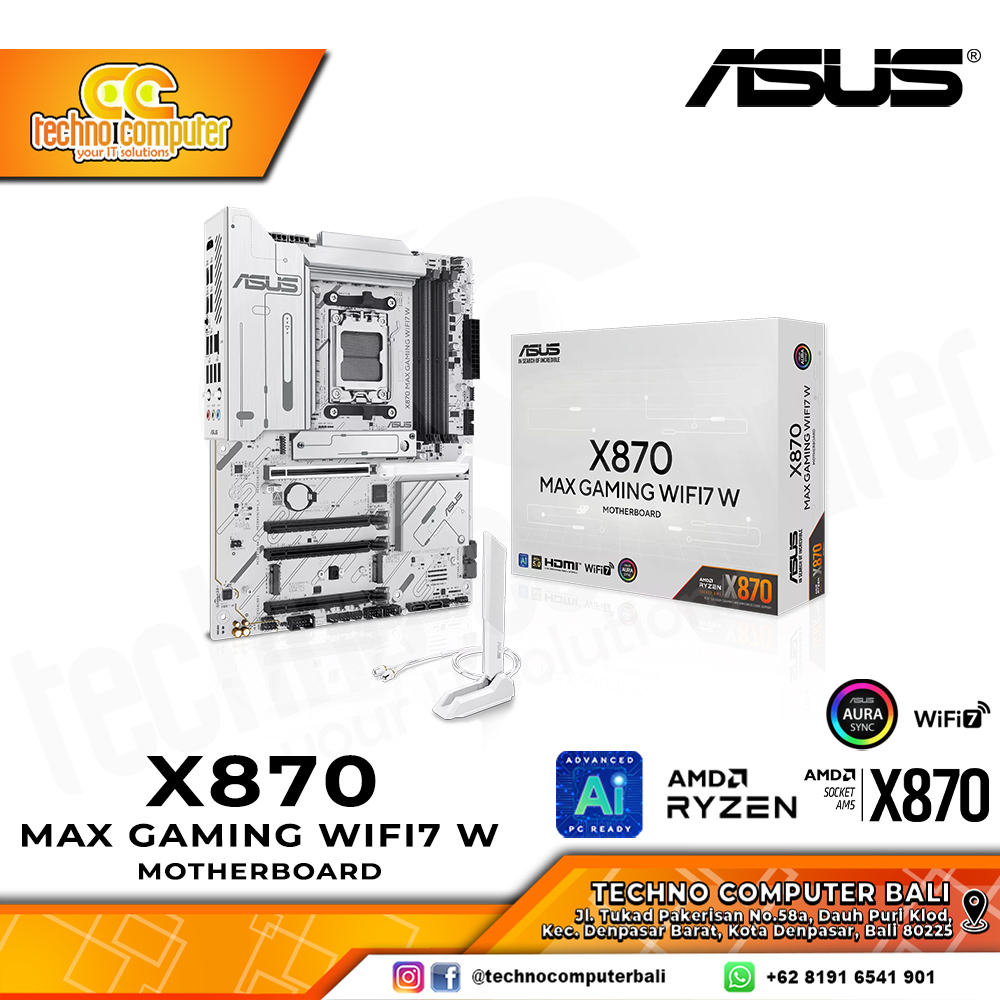

- X870 MAX GAMING WIFI7 W

CPU
- AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors*

Chipset
- AMD X870 Chipset

Memory
- 4 x DIMM slots, max. 256GB, DDR5
- Dual channel memory architecture

Graphics
- 1 x HDMI port**
- 2 x USB4 (40Gbps) ports support USB Type-C display outputs***

Expansion Slots
AMD Ryzen 9000 & 7000 Series Desktop Processors*
- 1 x PCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen 8000 Series Desktop Processors
- 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
AMD X870 Chipset
- 2 x PCIe 4.0 x16 slots (support x1 mode)
- 1 x PCIe 3.0 x16 slot (supports x1 mode)***

Storage
- Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*

Ethernet|
- 1 x Realtek 2.5Gb Ethernet
- ASUS LANGuard

Wireless & Bluetooth
- Wi-Fi 7*
- 2x2 Wi-Fi 7 (802.11be)
- Supports 2.4/5/6GHz frequency band**
- Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
- Bluetooth v5.4***

Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback

Accessories
Cables
- 2 x SATA 6Gb/s cables

Miscellaneous
- 1 x ASUS WiFi Q-Antenna
- 1 x M.2 rubber package
- 1 x Screw package for M.2 SSD

Documentation
- 1 x Quick start guide

Operating System
- Windows 11

Form Factor
- ATX Form Factor
- 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
