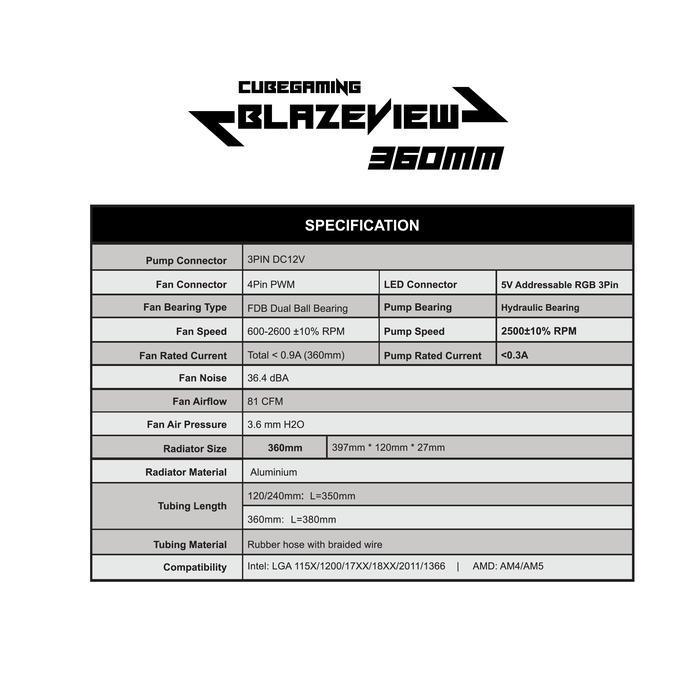

SPECIFICATION
Component Specification
Pump Connector 3PIN DC12V
Fan Connector 4Pin PWM
LED Connector 5V Addressable RGB 3Pin
Fan Bearing Type FDB Dual Ball Bearing
Pump Bearing Hydraulic Bearing
Fan Speed 600–2600 ±10% RPM
Pump Speed 2500 ±10% RPM
Fan Rated Current Total < 0.9A (360mm)
Pump Rated Current < 0.3A
Fan Noise 36.4 dBA
Fan Airflow 81 CFM
Fan Air Pressure 3.6 mm H2O
Radiator Size 360mm 397mm * 120mm * 27mm
Radiator Material Aluminium
Tubing Length 120/240mm: L=350mm; 360mm: L=380mm
Tubing Material Rubber hose with braided wire
Compatibility Intel: LGA 115X/1200/17XX/18XX/2011/1366
AMD: AM4/AM5
