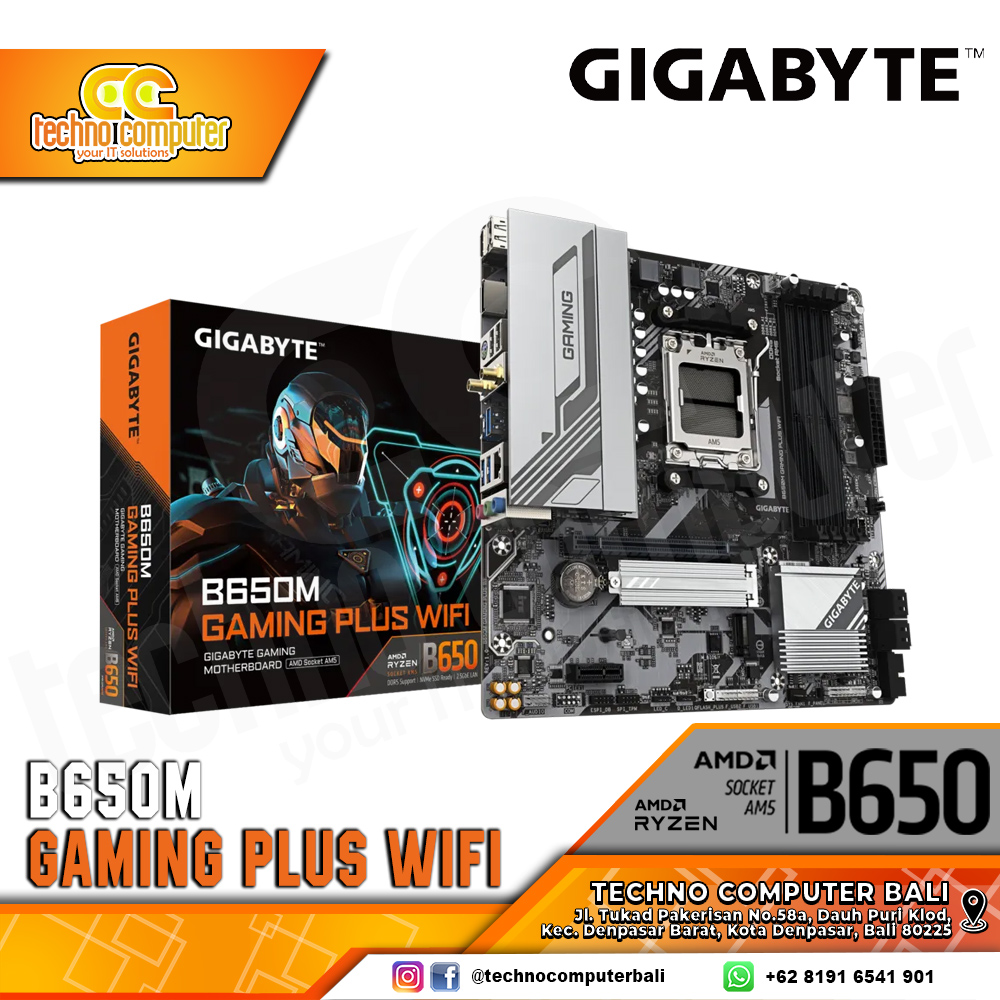

𝗦𝗽𝗲𝗰𝗶𝗳𝗶𝗰𝗮𝘁𝗶𝗼𝗻𝘀 :

CPU
- AMD Socket AM5, support for:
- AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors
(Go to GIGABYTE's website for the latest CPU support list.)

Chipset
- AMD B650

Memory
- Support for DDR5
- 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
- Dual channel memory architecture

Onboard Graphics
- 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

Audio
- Realtek® Audio CODEC
- High Definition Audio
- 2/4/5.1/7.1-channel

LAN
- Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication module
Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.0)
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 160MHz wireless
Realtek® Wi-Fi 6 RTL 8851BE (PCB rev. 1.1)
- WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 80MHz wireless

Expansion Slots
- 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
 AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x16 mode
 AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
 AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
Chipset:
- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)

Storage Interface
- 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580 SSDs:
 AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x4/x2 SSDs
 AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
 AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
- 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs
- 4 x SATA 6Gb/s connectors

Bundled Software
- Norton® Internet Security (OEM version)
- LAN bandwidth management software

Operating System
- Support for Windows 11 64-bit
- Support for Windows 10 64-bit

Form Factor
- Micro ATX Form Factor; 24.4cm x 24.4cm
